VAM 40 MKII tent heating

Mobile warm air heater for tent heating.

The warm air heater VAM 40 MK II is a mobile 38-kW unit primarily developed to provide heating in temporary or transportable buildings or tents.

The VAM 40 operates according to the indirect fired principle meaning that the supply airstream is heated separately from the combustion chamber. This way, the tent is heated with clean air free from combustion products or fumes.

The VAM 40 is essentially self-contained, requiring only a source of external electric power. The unit operates effectively on all diesel fuels and two robust wheels ensure easy transportation.



Applications

  • Accommodation
  • Field hospitals
  • Military camps
  • Relief camps
  • Temporary buildings
  • Tents

Features and Benefits

  • Cabinet made of 0,9 mm galvanized, powder coated steel sheet
  • Top finish painting standard NATO green, RAL 6014
  • Circular openings (Ø225) for two supply and two return air hoses
  • Operation with or without return air hoses fitted
  • Adjustable fresh air intake from 0 to 40% of the total air volume
  • Cold start at temperatures down to -40oC
  • All necessary safety devices built in for protection and complete shut down in case of malfunction

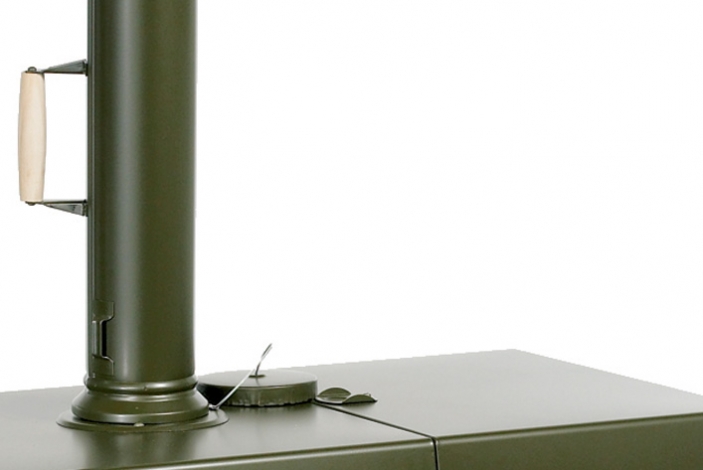

  • When storing or transporting the heater, the wheels and flue are fitted onto the unit
  • A hook in the flange makes it possible to lift the heater with a crane
  • Fork-lift slots in the sides of the heater allow it to be lifted by a fork-lift
  • Fitted with handles so that it can be carried manually by four persons

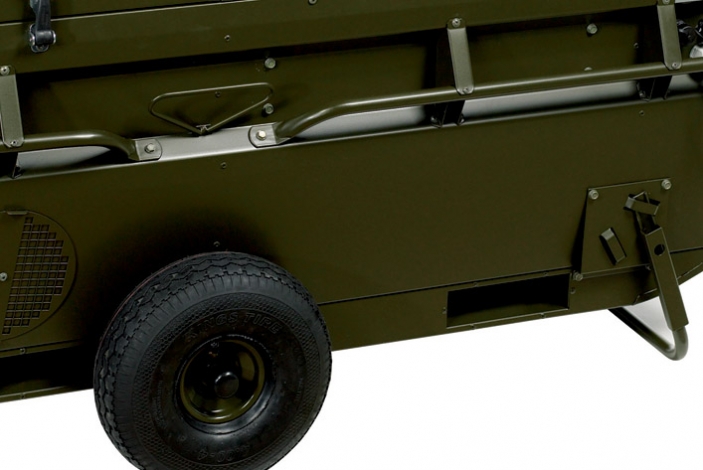

  • Sturdy wheels that can be fitted by one man - no tools are required
  • Skids underneath the unit allow it to be transported across snow and ice when no wheels are fitted
  • Fuel supply from jerry can or oil drum, with a fuel supply lance for drum as standard
  • Connect to the mains power supply or a separate diesel generator through a 15 m power cable
  • Controlled by an optional remote thermostat which will be placed inside the tent
  • Possibility for optional running the unit with a CO monitor
  • Allowing ventilation without heating
  • Highly efficient
  • Built according to EN 13842 and CE-marked
