ACM 7 MKII tent cooling

Air conditioner for tent cooling.

The ACM 7 MK II air conditioner is a 7-kW portable unit developed primarily to provide air conditioning in temporary or transportable buildings or tents. The ACM 7 MK II is designed to be placed outside the tent with ducted supply and return air.

The function of the ACM 7 MK II is based on a cooling circuit and two powerful centrifugal fans. The upper section contains the evaporator and evaporator fan which draws warm ambient or recirculated air through the cold evaporator coil and supplies cooled air through the discharge into the room. The lower section of the unit houses the condenser fan and condenser coil which return the heat taken from the cooled air to the surrounding atmosphere.

The ACM 7 MK II can be equipped with an electric heating coil e.g. to provide heating in the night time, when temperatures may fall below 20 °C.



Applications

  • Tents
  • Communication centres
  • Field hospitals
  • Military camps
  • Relief camps
  • Temporary buildings

Features and Benefits

  • The ACM 7 MK II is built into a cabinet manufactured from 0,9 mm galvanized and powder coated steel sheet
  • To finish painting is standard NATO green, RAL 6014
  • Can provide cooling at ambient temperatures up to +55oC
  • Environment-friendly R134a refrigerant
  • High/low pressure pressostat switch ensuring long compressor lifetime
  • 7,2 kW  electric heating coil (special version)

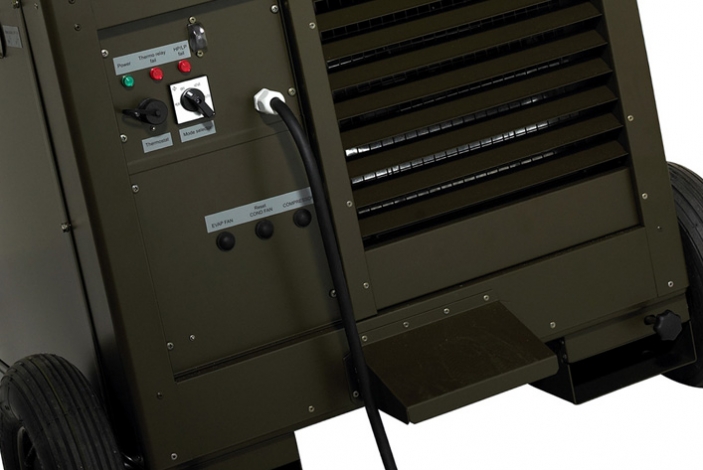

  • Connect to the mains power supply or a separate diesel generator through 1 15 m power cable with CEE plug
  • VENT-only option, allowing supply of fresh outdoor air or circulating the  indoor air, even when cooling is not needed

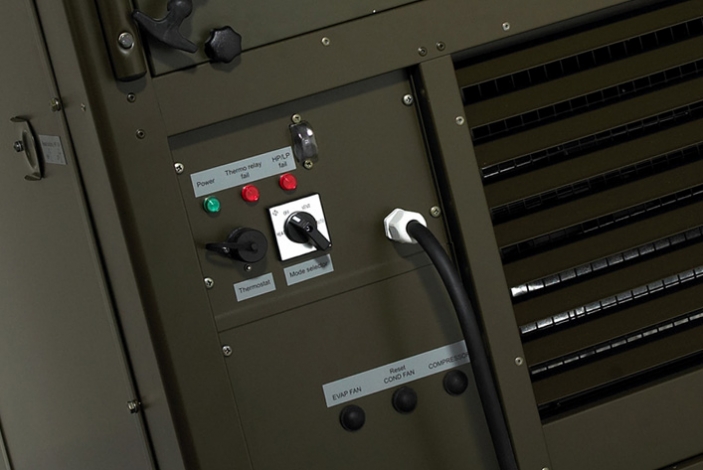

  • Temperature control by a room thermostat placed inside the tent
  • Washable and easy removable coarse filters in front of internal air intake as well as in front of external air intake

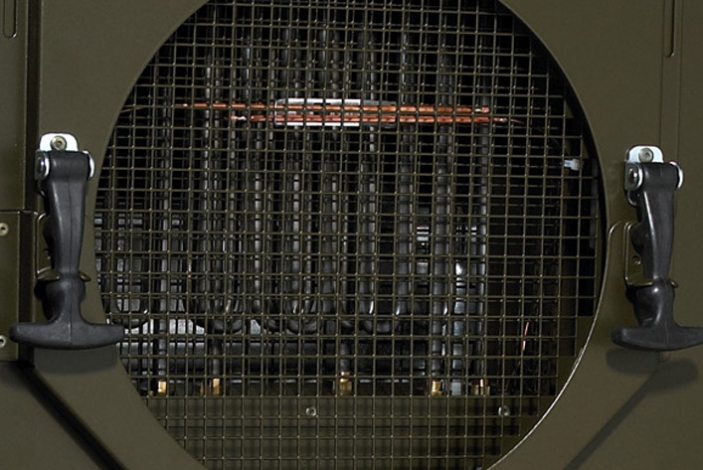

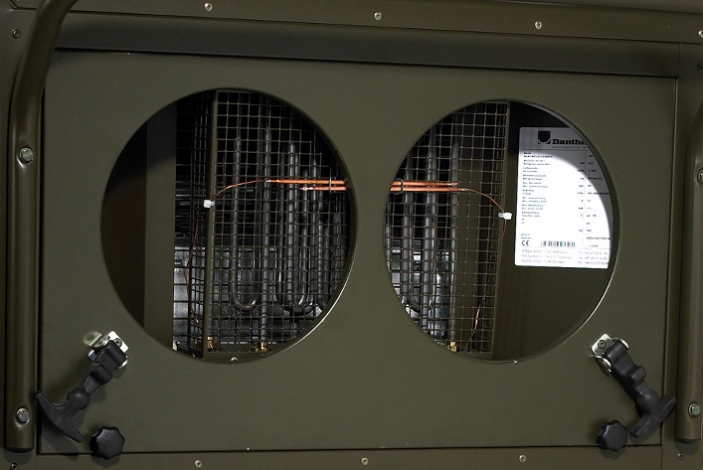

  • Inlet and discharge openings for one Ø315 mm insulated flexible hose, alternatively for two Ø225 mm, thus allowing the air-conditioning unit itself to be set up outside. These hoses are extra accessories
  • Easy transportation, either by forklift, the four lifting hooks on top of the unit or with the two wheels
  • Setup and operation can be done by a single person
  • Removable wheels, which can be stowed on top of the unit
  • CE-marked
