ACM 5 MKII container cooling

Air conditioner for container cooling.

The ACM 5 MK II air conditioner has a cooling capacity of 5 kW and a heating capacity of 2 kW. The unit is designed for window mounting in ISO containers.

By means of a trap door system, the air conditioner is mounted inside the container to ensure easy and practical transportation. The unit is pushed outside of the container for operation.

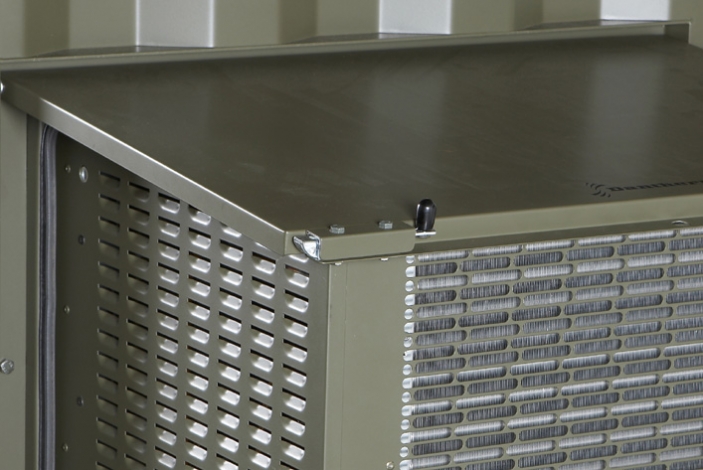

The function of the ACM 5 MK II is based on a cooling circuit with two powerful fans. The evaporator section (inside the container) contains the evaporator and a radial fan which draws the warm internal air from the shelter through the cold evaporator and blows out the cooled air through the discharge grill. The condenser section (outside the container) contains the condenser and an axial fan which returns the heat taken from the internal air to the outside.

The condenser circuit is not filtered. Instead of filtering this air path, sand and debris entering the unit is expelled through holes at the bottom of the unit. This means low maintenance.



Applications

  • Containers

Features and Benefits

  • Robust military product

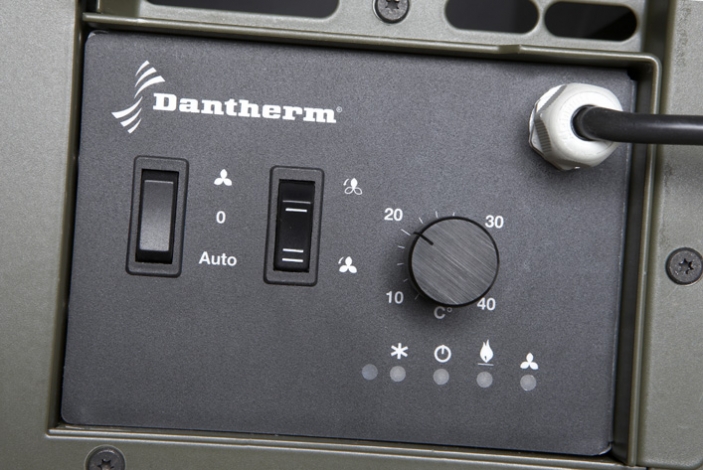

  • Easy operation

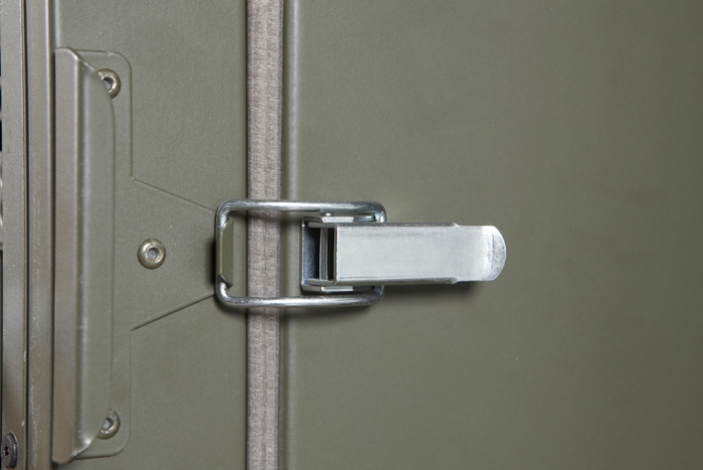

  • During transport the air conditioner is locked and protected inside the container
  • Built-in fresh air intake
  • Provides cooling at ambient temperatures up to +60°C
  • 100% bolt-on upgrade for customers already using the ACM 5 MK I
  • CBRN/COLPRO compliance
  • NATO green, IR reflective, BS381C285
  • Complies with Def. Stan 59-411 Land Class V
